RCYD(C)系列懸掛自卸式永磁除鐵器
產品介紹：

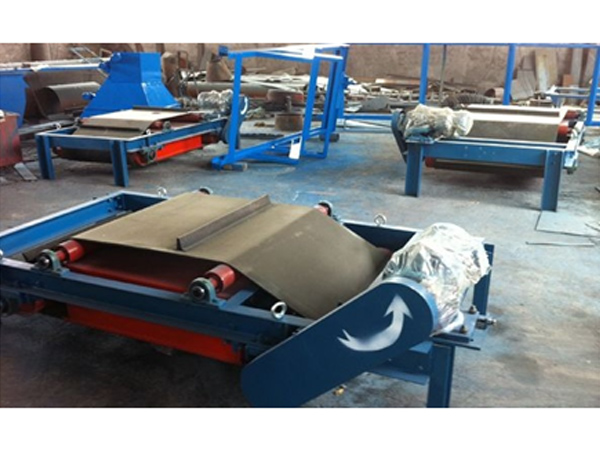

RCYD、RCYC系列懸掛自卸式永磁除鐵器是一種自動卸鐵式除鐵裝置，它是在強磁永磁除鐵器基礎上增添了減速機、卸鐵皮帶、滾筒、主體框架等裝置。工作時將不斷吸附在除鐵器上的鐵磁性物質通過卸鐵皮帶的旋轉自動拋出，達到自動卸鐵目的。該機型應用范圍廣、節能省電、維護方便、故障率低，在惡劣的環境中運行穩定可靠，是眾多廠家采用較多的機型。
主要技術參數：
型號/參數/項目 | 適用帶寬mm | 額定吊高h(yuǎn) mm | 磁場強度≈mT | 驅動電機功率KW | 外型尺寸mm | 懸掛尺寸mm | 適用帶速≤m/s | 整機重量kg | |||
L | W | H | |||||||||
RCYD(C)-6.5 | T1 | 650 | 200 | 90 | 2.2 | 2160 | 1075 | 795 | 1200x890 | 4.5 | 1300 |
T2 | 120 | 2.2 | 2160 | 1075 | 795 | 1200x890 | 1420 | ||||
T3 | 150 | 2.2 | 2310 | 1075 | 795 | 1200x890 | 1750 | ||||
RCYD(C)-8 | T1 | 800 | 250 | 90 | 2.2 | 2350 | 1280 | 795 | 1300x1090 | 4.5 | 1920 |
T2 | 120 | 2.2 | 2350 | 1280 | 795 | 1300x1090 | 2180 | ||||
T3 | 150 | 3.0 | 2520 | 1253 | 795 | 1300x1090 | 2820 | ||||
RCYD(C)-10 | T1 | 1000 | 300 | 90 | 3.0 | 2660 | 1540 | 950 | 1400x1335 | 4.5 | 2350 |
T2 | 120 | 3.0 | 2660 | 1540 | 950 | 1400x1335 | 2700 | ||||
T3 | 150 | 4.0 | 2760 | 1540 | 950 | 1400x1335 | 3680 | ||||
RCYD(C)-12 | T1 | 1200 | 350 | 90 | 4.0 | 2900 | 1730 | 970 | 1600x1515 | 4.5 | 3250 |
T2 | 120 | 4.0 | 2900 | 1730 | 970 | 1600x1515 | 4100 | ||||
T3 | 150 | 5.5 | 2900 | 1730 | 970 | 1600x1515 | 5150 | ||||
RCYD(C)-14 | T1 | 1400 | 400 | 90 | 4.0 | 2900 | 1730 | 970 | 1900x1750 | 4.5 | 4800 |
T2 | 120 | 5.5 | 3225 | 1980 | 1180 | 1900x1750 | 5600 | ||||
T3 | 150 | 5.5 | 3340 | 1980 | 1180 | 1900x1750 | 7450 | ||||
RCYD(C)-16 | T1 | 1600 | 450 | 90 | 5.5 | 3450 | 2210 | 1180 | 2000x1940 | 4.5 | 6200 |
T2 | 120 | 5.5 | 3450 | 2210 | 1180 | 2000x1940 | 7750 | ||||
T3 | 150 | 7.5 | 3620 | 2210 | 1180 | 2000x1940 | 1038 | ||||
RCYD(C)-18 | T1 | 1800 | 500 | 90 | 7.5 | 3825 | 2570 | 1180 | 2200x2180 | 4.5 | 8500 |
T2 | 120 | 7.5 | 3825 | 2570 | 1180 | 2200x2180 | 10850 | ||||
T3 | 150 | 11.0 | 4025 | 2570 | 1270 | 2200x2180 | 14800 | ||||
RCYD(C)-20 | T1 | 2000 | 550 | 90 | 7.5 | 4275 | 2570 | 1180 | 2400x2450 | 4.5 | 11500 |
T2 | 120 | 11.0 | 4275 | 2570 | 1250 | 2400x2450 | 14270 | ||||
T3 | 150 | 11.0 | 4540 | 2670 | 1250 | 2400x2450 | 19260 | ||||
RCYD(C)-22 | T1 | 2200 | 600 | 90 | 11.0 | 4810 | 2820 | 1250 | 2700x2670 | 4.5 | 13980 |
T2 | 120 | 11.0 | 4810 | 2820 | 1250 | 2700x2670 | 18350 | ||||
T3 | 150 | 15.0 | 4810 | 2820 | 1350 | 2700x2670 | 25080 | ||||
RCYD(C)-24 | T1 | 2400 | 650 | 90 | 15.0 | 5280 | 3180 | 1250 | 3200x2850 | 4.5 | 18760 |
T2 | 120 | 15.0 | 5280 | 3180 | 1350 | 3200x2850 | 23870 | ||||
T3 | 150 | 15.0 | 5280 | 3180 | 1350 | 3200x2850 | 29960 | ||||
